When it comes to drilling projects, choosing the right equipment can significantly impact efficiency, cost, and project success. Two of the most common types of drilling rigs used in mining, construction, and water well drilling are DTH (Down-The-Hole) drilling rigs and rotary drilling rigs. While both are designed to penetrate the earth, their operating mechanisms, applications, and advantages differ substantially. In this article, we’ll explore the key differences between DTH drilling rigs and rotary drilling rigs to help you make an informed decision for your project.
What is a DTH Drilling Rig?
A DTH drilling rig is a type of percussion drilling machine that uses a hammering mechanism at the bottom of the drill string to break rock and soil. The drill bit is powered by compressed air, which drives a hammer that strikes the rock repeatedly, allowing fast penetration even in hard rock formations.
Key Features of DTH Drilling Rigs:
- Uses compressed air to power a hammer and drill bit.
- Ideal for hard rock drilling.
- Provides high drilling speed with precise hole control.
- Produces less deviation due to the direct energy transfer to the drill bit.
- Requires less energy compared to traditional rotary rigs for hard rock applications.
Common Applications:
- Water well drilling
- Mining and quarry drilling
- Geotechnical and exploration drilling
- Foundation and pile work

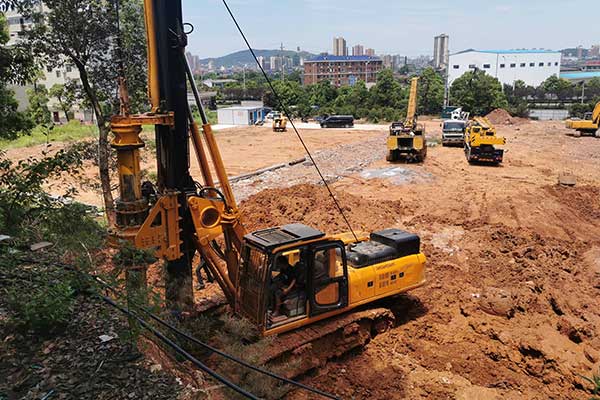

What is a Rotary Drilling Rig?
A rotary drilling rig uses a rotating drill bit to grind, cut, and crush rock formations. The drill bit is attached to a drill string that rotates and applies downward pressure, gradually penetrating the earth. Rotary drilling rigs can operate with water, drilling mud, or air to cool the drill bit and remove cuttings from the hole.
Key Features of Rotary Drilling Rigs:
- Rotates the drill bit to cut through soil and rock.
- Suitable for soft to medium-hard rock and soil.
- Can drill deeper and larger diameter holes.
- Requires more power and often uses mud or water for cooling and lubrication.
- Offers flexibility in handling various soil and rock types.
Common Applications:
- Oil and gas drilling
- Deep water wells
- Construction and infrastructure projects
- Large-diameter foundation piles
Key Differences Between DTH and Rotary Drilling Rigs
| Feature | DTH Drilling Rigs | Rotary Drilling Rigs |
|---|---|---|
| Drilling Mechanism | Percussion (hammering at the bit) | Rotation (cutting or grinding) |
| Power Source | Compressed air | Diesel, electric, or hydraulic |
| Best Suited For | Hard rock formations | Soft to medium-hard rock and soil |
| Drilling Speed | Fast in hard rock | Moderate, slower in hard rock |
| Hole Accuracy | High | Moderate, can deviate |
| Cost Efficiency | More efficient in hard rock | Better for deep or large-diameter holes |
| Applications | Water wells, mining, foundation piles | Oil wells, large foundations, infrastructure drilling |
How to Choose the Right Drilling Rig
Selecting between a DTH drilling rig and a rotary drilling rig depends on several factors:
- Rock Type: For hard rock formations, DTH rigs are faster and more efficient. For softer or mixed soil types, rotary rigs offer versatility.
- Hole Depth and Diameter: Rotary rigs are better for deeper or larger-diameter holes, while DTH rigs excel in precision and speed for smaller holes.
- Project Budget: DTH rigs typically consume less power for hard rock drilling, reducing operating costs.
- Site Conditions: Consider accessibility, space limitations, and environmental factors.
Conclusion
Both DTH drilling rigs and rotary drilling rigs have unique advantages tailored to specific drilling conditions. DTH rigs excel in hard rock and precise operations, while rotary rigs offer versatility and cost efficiency in softer formations. By understanding the differences, drilling contractors, construction companies, and mining operators can select the optimal rig for their project needs, ensuring efficiency, safety, and cost-effectiveness.
