Down-the-hole (DTH) drilling rigs are essential tools in the mining, quarrying, construction, and geothermal industries. But what exactly is a DTH drilling rig, and how does it work? In this article, we’ll break down the key components, working principles, and benefits of using DTH drilling rigs.

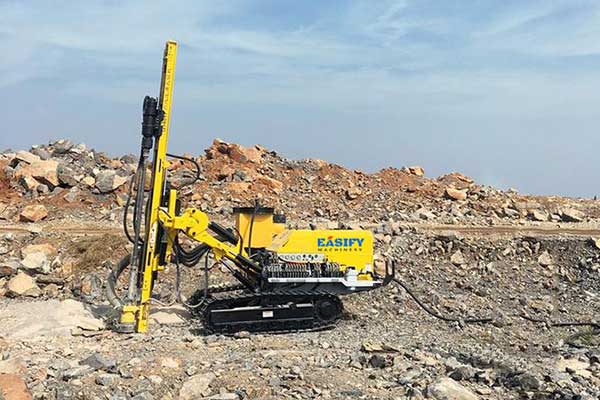

What is a DTH Drilling Rig?
A DTH drilling rig (Down-the-Hole drilling rig) is a type of drill used to bore holes deep into hard rock formations. The term “down-the-hole” refers to the location of the drill hammer — which is positioned directly behind the drill bit, at the bottom of the hole.
This method delivers powerful percussive force and rotary motion directly to the drill bit, enabling faster and more efficient drilling through solid rock, even in the most challenging geological conditions.
Main Components of a DTH Drilling Rig
- Drill Rig Base: The main machine that supports and powers the system.
- Drill Rods (Drill Pipes): Hollow pipes that carry compressed air and transmit torque.
- DTH Hammer: A pneumatic device that delivers repeated percussive blows.
- DTH Bit: The cutting tool that fractures the rock.
- Air Compressor: Supplies high-pressure air to operate the hammer and clean the hole.
How Does a DTH Drilling Rig Work?
In a DTH drilling system:
- Compressed air is pumped through the drill pipe to power a pneumatic hammer (also called a DTH hammer).
- The hammer strikes the DTH bit, which breaks the rock.
- At the same time, the drill rotates to enhance penetration and maintain a straight hole.
- The high-pressure air also flushes the rock cuttings up to the surface.
Because the hammer is located right behind the bit, there is minimal energy loss compared to top hammer drills, making DTH rigs ideal for deep and straight holes in hard rock.
Types of DTH Drilling Rigs
DTH drilling rigs come in various configurations to suit different project needs and working environments.

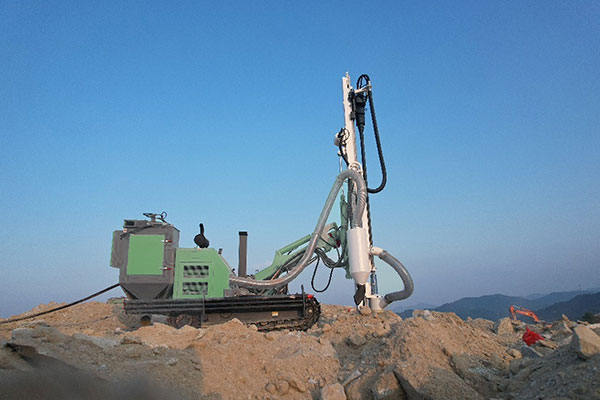

- Crawler-Mounted DTH Drilling Rigs: Built on tracked undercarriages, crawler-mounted rigs offer excellent stability on uneven terrain. They’re widely used in mining, quarries, and rugged job sites where mobility and traction are essential.
- Portable DTH Drilling Rigs: Lightweight and easy to transport, portable DTH rigs are ideal for remote or hard-to-reach areas. They’re commonly used for small water wells and basic geotechnical work.
- Small DTH Drilling Rigs: Compact yet capable, small DTH rigs are suited for shallow to medium-depth drilling. They’re perfect for farm irrigation, small construction sites, and limited-space operations.
- Truck-Mounted DTH Drilling Rigs: Mounted on trucks for easy mobility, these heavy-duty rigs are used for deep drilling in large-scale projects like water wells, mining, and infrastructure development.
Common Applications of DTH Drilling Rigs
DTH rigs are widely used in:
- Mining exploration
- Blasting holes in quarries
- Geothermal energy
- Foundation and piling projects
- Oil and gas exploration (shallow)
Their ability to drill straight, clean holes makes them a preferred choice for many hard rock applications.
Benefits of DTH Drilling Rigs
- Efficient Rock Penetration: Especially effective in hard rock formations.
- Straight and Accurate Holes: Ideal for deep vertical drilling.
- Lower Energy Loss: Percussive force is delivered directly to the bit.
- Versatile: Suitable for a wide range of industrial applications.
- Durable and Cost-Effective: Fewer parts wear out compared to other systems.
DTH Drilling vs. Top Hammer Drilling
| Feature | DTH Drilling | Top Hammer Drilling |
|---|---|---|
| Percussive Source | At bottom (near bit) | At top of drill rod |
| Hole Depth Suitability | Deep holes | Shallower holes |
| Hole Straightness | Excellent | Can deviate at depth |
| Energy Loss | Minimal | Higher (through rods) |
| Best for | Hard rock, deep holes | Medium rock, short holes |
Choosing the Right DTH Drilling Rig
When selecting a DTH drilling rig, consider:
- Hole diameter and depth
- Type of terrain and rock
- Compressor capacity
- Mobility (truck-mounted, crawler, skid, or trailer)
- Automation features for safety and productivity
Final Thoughts
A DTH drilling rig is a powerful and reliable solution for drilling deep, straight holes in tough geological conditions. Whether you’re working in mining, quarrying, water wells, or construction, a DTH rig delivers speed, precision, and durability. If you’re looking for a robust drilling solution, DTH technology is worth the investment.
