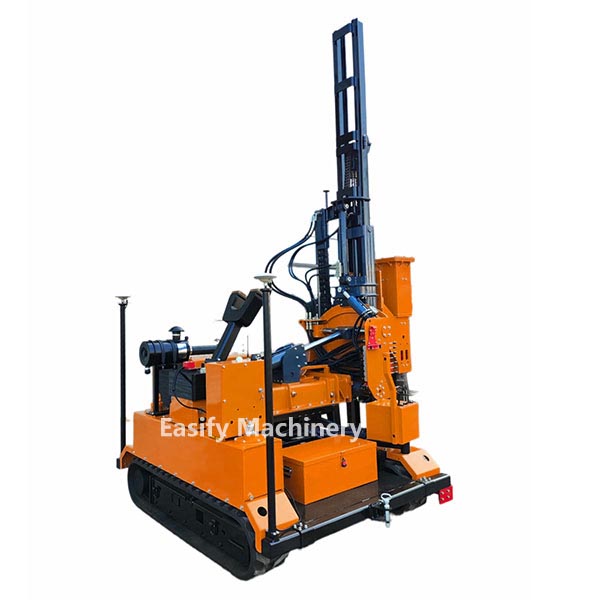

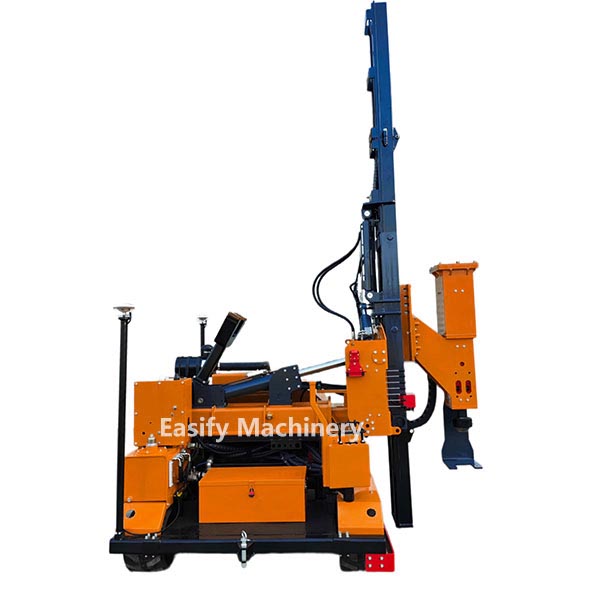

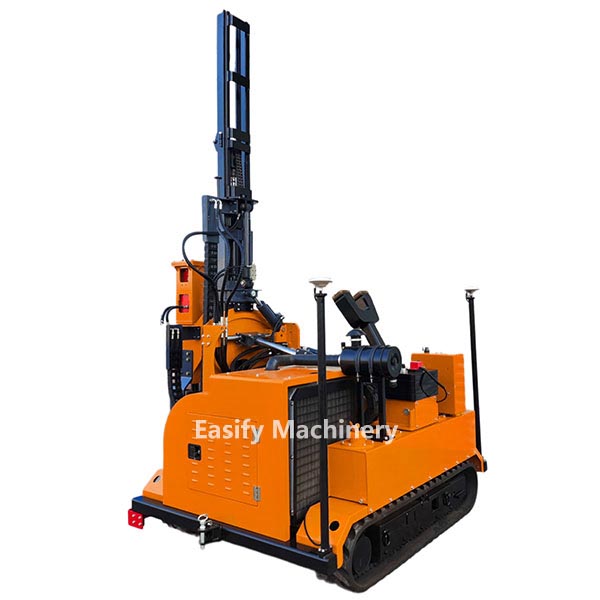

EM-S500 solar pile driver is a next-generation piling machine designed for photovoltaic (PV) installation projects. Equipped with integrated GPS positioning, it brings precision, speed, and automation to solar pile foundation construction, significantly reducing alignment errors and manual workload.
Specifications:
| Item | Unit | Value |
| Piling driving height | mm | 4000 |
| Ground screw pile driving height | mm | 4000 |
| Work dimensions (L ×W × H) | mm | 2900×2550×2950 |
| Transport dimensions (L×W× H) | mm | 3000×2600×3000 |
| Operating weight | Kg | 5000 |
| Track plate width | mm | 300 |
| Track drive ratio | / | 1:53 |
| Climbing ability | ° | ±18 |
| Engine brand | / | Cummins |
| Engine model number | / | 4BT3.9-C100 |
| Rated power | KW | 75 |
| Hydraulic oil pump | ml | 63 |
| Hydraulic system pressure | bar | 190 |
| Hydraulic system flow | l/min | 150 |
| torque of walking motor | Nm | 10500 |
| Walking speed | m/min | 70/35(Dual-speed) |
| Hydraulic hammer flow | l/min | 40-90 |
| Hydraulic hammer strike frequency | bpm | 450-900 |
| Single impact energy | J | 1260 |
| Pile driving Angle (left and right) | ° | ±10 |
| Pile driving Angle（front and rear） | ° | 30-110 |
| Hydraulic oil tank capacity | L | 80 |
| Fuel tank capacity | L | 80 |
