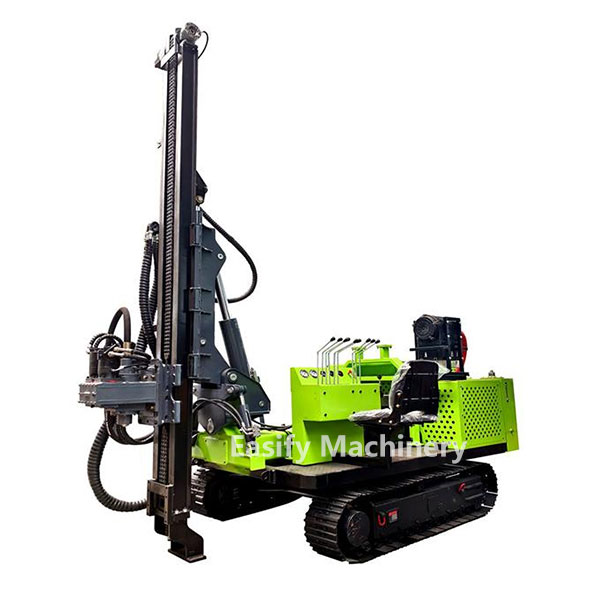

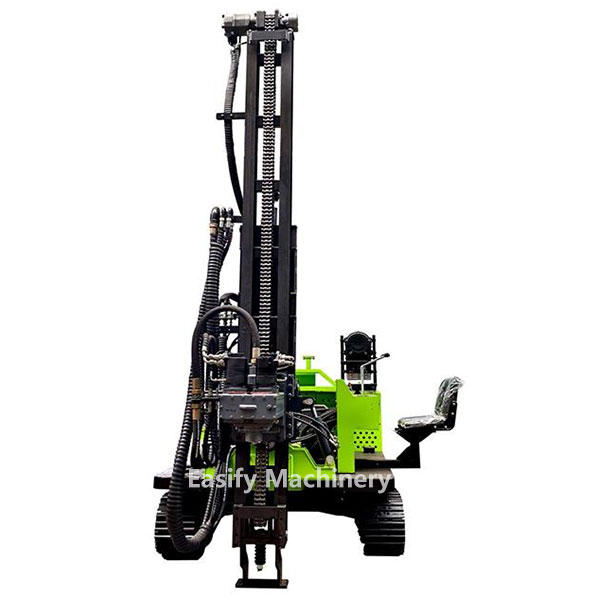

EM-S550 photovoltaic pile driver is a high-efficiency piling machine specifically engineered for photovoltaic (solar panel) mounting systems. It delivers powerful performance on diverse terrains, ensuring fast and accurate pile installation with minimal labor and time.
Specifications:
| Item | Unit | Value |
| Piling driving height | mm | 4000 |
| Ground screw pile driving height | mm | 4000 |
| DTH drilling depth | mm | 3500 |
| DTH drilling diameter | mm | 50-350 |
| Auger drilling depth | mm | 3500 |
| Auger drilling diameter | mm | 50-400 |
| Work dimensions (L ×W × H) | mm | 4400×2585×5500 |
| Transport dimensions (L×W× H) | mm | 3640×1900×2580 |
| Operating weight | Kg | 6000 |
| Working platform turning angle | ° | 360 |
| Track plate width | mm | 300 |
| Track drive ratio | / | 1 ：21.4 |
| Climbing ability | ° | ≤30 |
| Rated power | KW | 75/91 |
| Hydraulic oil pump | Double-pump | 63+32 |
| Hydraulic system pressure | bar | 200 |
| Hydraulic system flow | l/min | 170 |
| Torque of walking motor | Nm | 7700 |
| Walking speed | Km/h | 0-3 |
| Single impact energy | J | 1260 |
| Drilling angle (right and left) | ° | 15 |
| Drilling angle (anterior and backward ) | ° | 0-115 |
| Hydraulic oil tank capacity | L | 105 |
| Fuel tank capacity | L | 85 |
