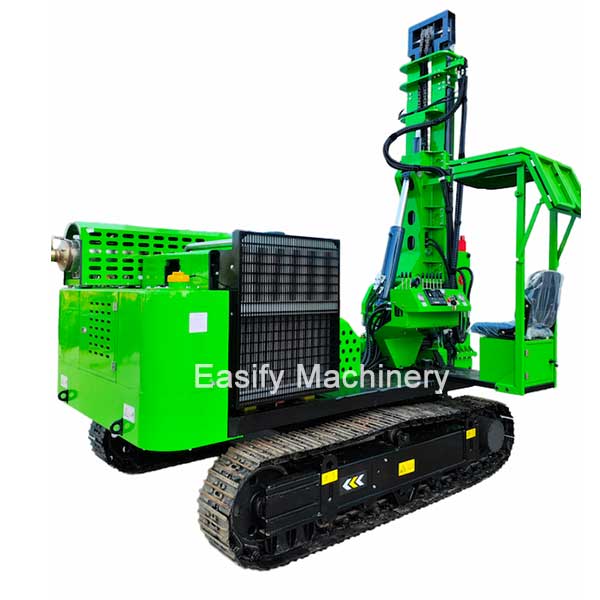

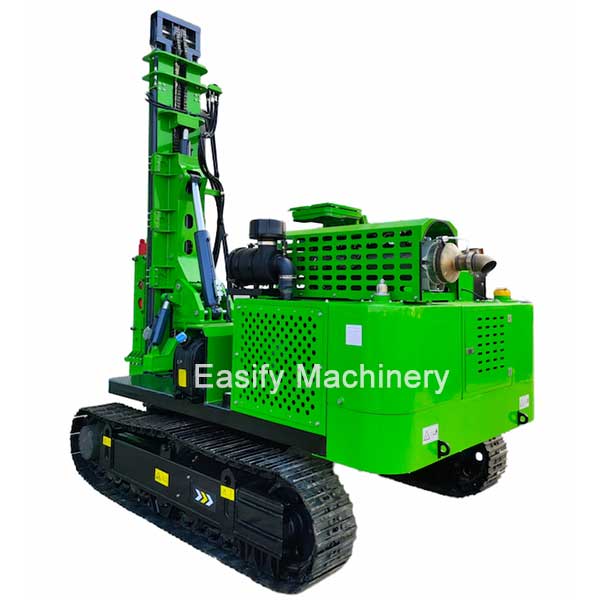

EM-S630 crawler solar pile driver is a robust, high-performance hydraulic piling machine designed for demanding solar farm installations. Built on a durable crawler chassis, the EM-S630 provides superior traction and stability on rough or uneven terrain, making it ideal for large-scale utility projects and complex site conditions.
Specifications:
| Item | Unit | Value |
| Piling driving height | mm | 5500 |
| Ground screw pile driving height | mm | 5500 |
| DTH drilling depth | mm | 5000 |
| DTH drilling diameter | mm | 50-350 |
| Auger drilling depth | mm | 5000 |
| Auger drilling diameter | mm | 50-400 |
| Work dimensions (L ×W × H) | mm | 4400×2585×7565 |
| Transport dimensions (L×W× H) | mm | 3640×1900×2580 |
| Operating weight | Kg | 6300 |
| Working platform turning angle | ° | 360 |
| Track plate width | mm | 300 |
| Track drive ratio | / | 1 ： 21.4 |
| Climbing ability | ° | ≤30 |
| Rated power | KW | 91 |
| Hydraulic oil pump | Double-pump | 63+32 |
| Hydraulic system pressure | bar | 200 |
| Hydraulic system flow | l/min | 170 |
| Torque of walking motor | Nm | 7700 |
| Walking speed | Km/h | 0-3 |
| Single impact energy | J | 1260 |
| Drilling angle (right and left) | ° | 0-10 |
| Drilling angle (anterior and backward ) | ° | 0-100 |
| Hydraulic oil tank capacity | L | 105 |
| Fuel tank capacitty | L | 85 |
