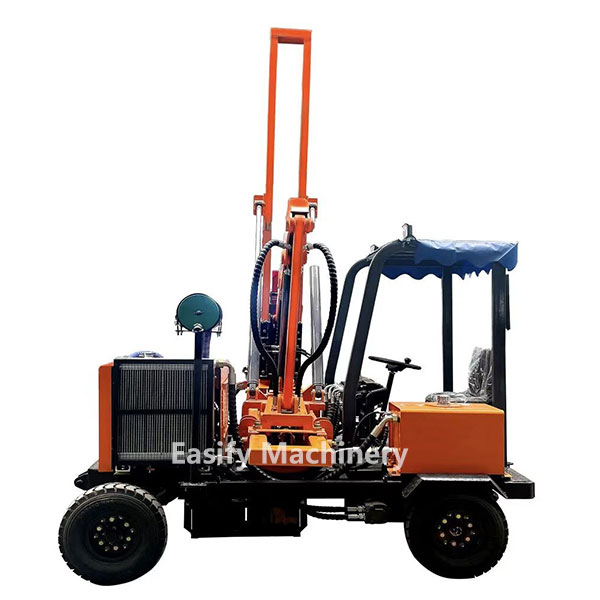

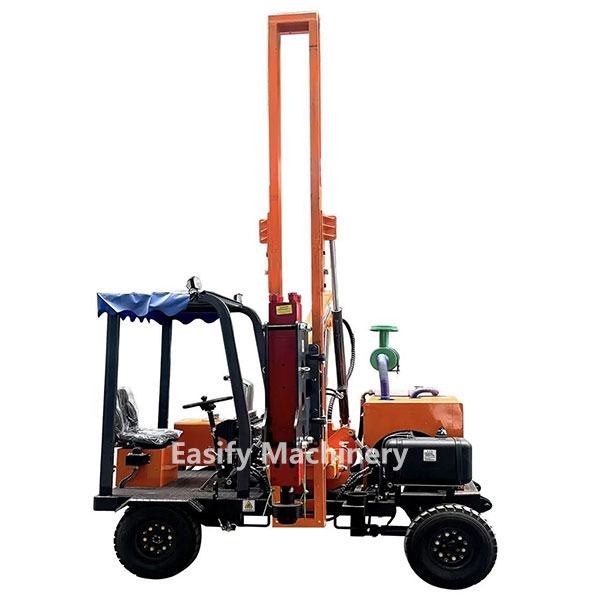

EM-G300 wheeled guardrail pile driver is a powerful, mobile, and efficient machine designed for the rapid installation of highway guardrail posts. Engineered for both performance and durability, this pile driver is ideal for road construction, municipal engineering, and safety barrier installation projects.
Specifications:
| Item | Unit | Value |

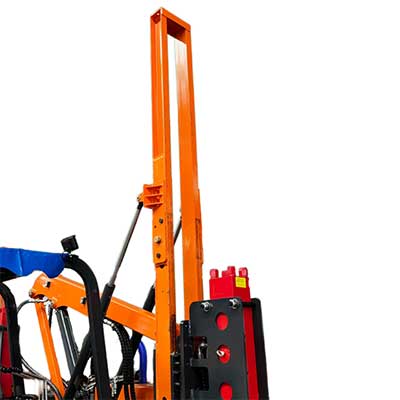

| Max. stroke of guide rail | mm | 4200 |
| Piling height | mm | 3000 |
| Drilling depth | mm | 2200 |
| Drilling diameter | mm | 50-300 |
| Work dimensions (L ×W × H) | mm | 2700×2650×3950 |
| Transport dimensions (L×W× H) | mm | 2700×2000×2400 |
| Operating weight | Kg | 3000 |

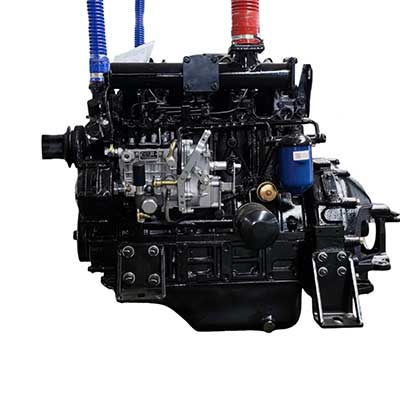

| Rated power | KW | 39 |
| Gear pump flow | ml/r | 40-50 |
| Hydraulic system pressure | bar | 160-200 |
| Hydraulic system flow | ml/r | 63-80 |

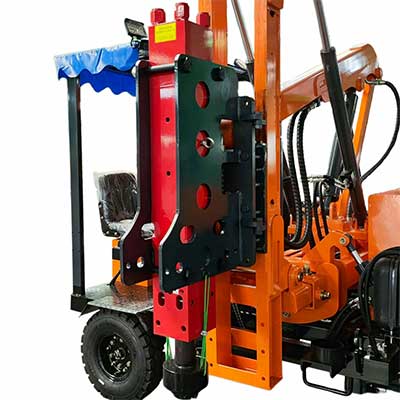

| Hydraulic hammer model | / | 85 |
| Impact frequency | bpm | 400-800 |
| Single impact energy | J | 1280 |
| Drill rod diameter | mm | 85 |
| Drill cap | mm | Customized according to the drawings |
| Torque of walking motor | Nm | 1185-1450 |
| Walking speed | Km/h | 5-12 |
| Torque of hydraulic motor | Nm | 2700-3300 |
| Inclination angle of sliding guide frame | ° | Left30/Right5 |
| Front and rear adjustment angle of frame | ° | 0-15 |

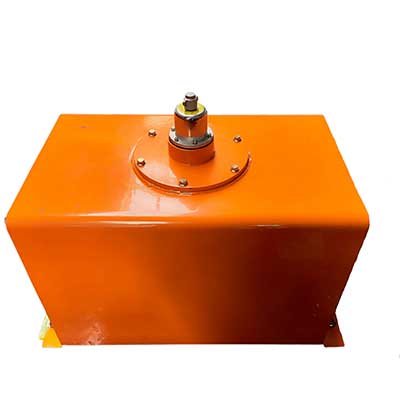

| Hydraulic oil tank capacity | L | 80 |
| Fuel tank capacity | L | 68 |

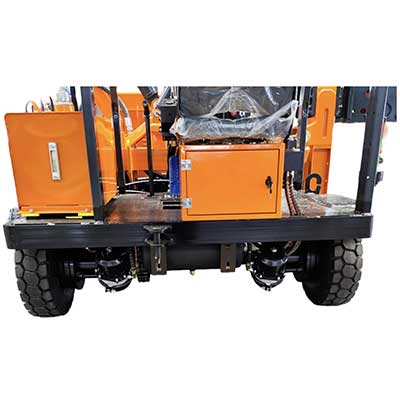

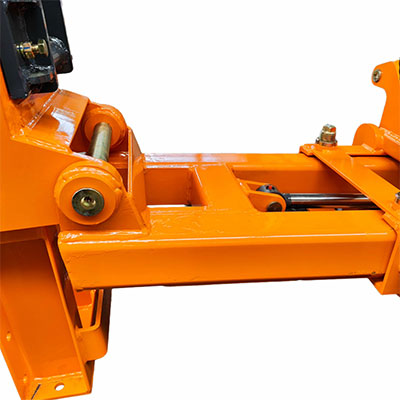

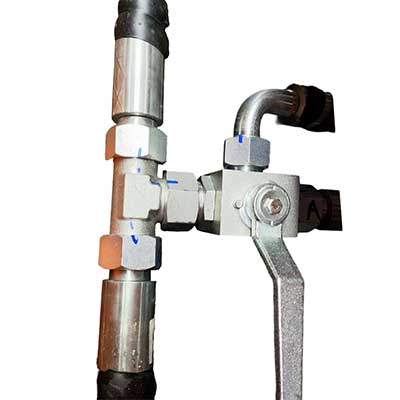

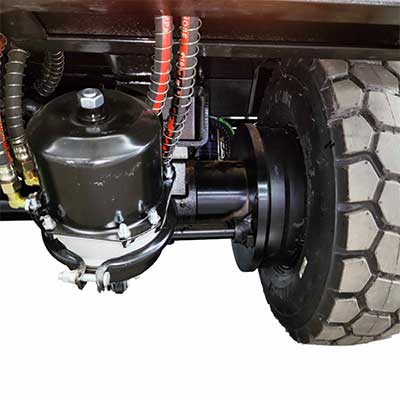

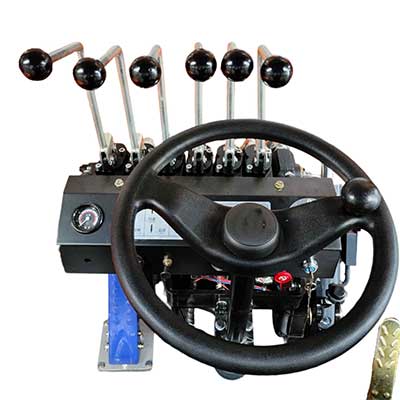

Components:
FAQs
What Does the Warranty Cover? How Long Does It Last?
One year manufacturer’s warranty from the time of arrival.
The whole machine is under warranty for one year, except for wearing parts.
Electrical accessories are under warranty for 3 months.
It does not cover damage caused by not following the manufacturer’s instructions on use, maintenance, and servicing.
Are the EM-G300 Customisable?
Yes, we can do it according to the customer’s requirements.
